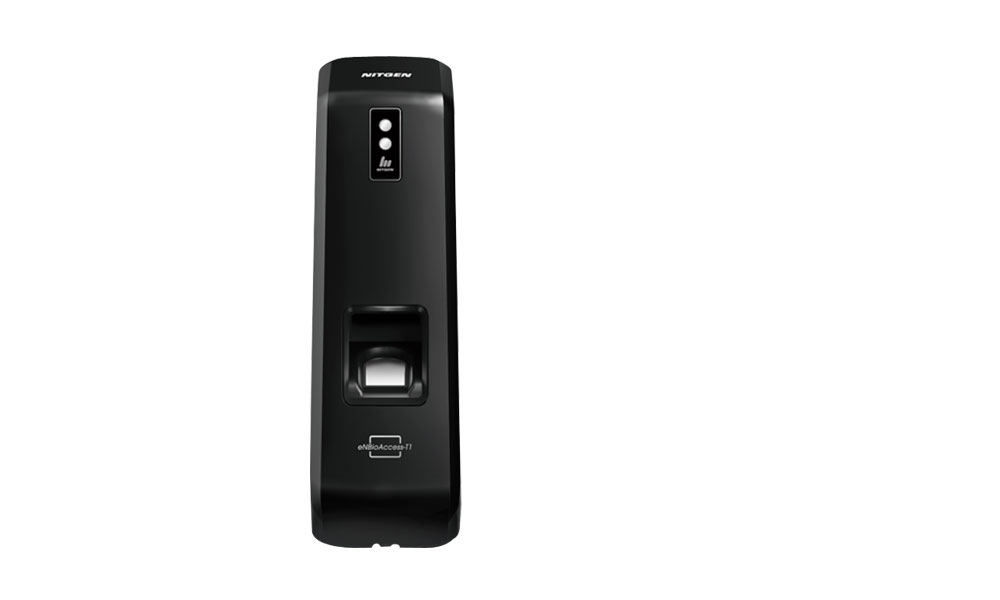

Nitgen eNBioAccess-T1

The Nitgen eNBioAccess-T1 access control terminal is capable of reading fingerprints, RF cards, and Bluetooth mobile keys. It has a fingerprint sensor with a resolution of 500 dpi. The eNBioAccess-T1 can be configured to use fingerprint and RF card authentication. It accepts several RF cards, including regular and high-frequency cards. (13.56MHz) – HID (Felica, iClass, CEPAS), Mifare (125kHz)- HID, EM.

It offers mobile key authentication with your phone, allowing card-free access from any Internet-connected place.

The eNBioAccess-T1 can be configured to use a mobile key to authenticate with your phone, giving you keyless and cardless (yet secure) access to your location. There is no need to physically give over the keys or cards while using remote key transmitting. With the mobile keys, you may set the users and the time for which they will be permitted access, providing you complete control over your access control mechanism with eNBioAccess-T1.

eNBioAccess-T1

TECHNICAL SPECIFICATION

ITEM SPECIFICATION
CPU ATMEL 400MHz
Memory 64MB DRAM / 256MB Flash
Sensor Optical / 500 DPI
Authentication Type Fingerprint, RF card
1:1 Time 0.2 sec.
1:N Time 1 sec.
Template Capacity 20,000 templates (2 templates / 1 finger, 10,000 users)
Log Capacity 100,000 logs
Communication TCP/IP, RS-485, Wiegand Out
Lock Deadbolt, EM Lock, Door Strike, Automatic Door
Environment -20~60 ℃ / < RH 90%
Certificate KC, CE, FCC
Dimensions 58(W) x 187.9(H) x 51.6(D) mm

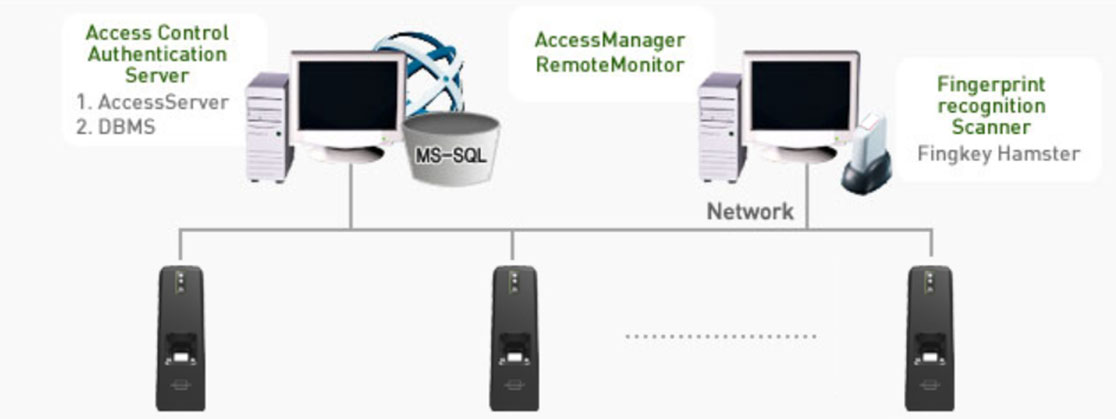

SYSTEM CONFIGURATION

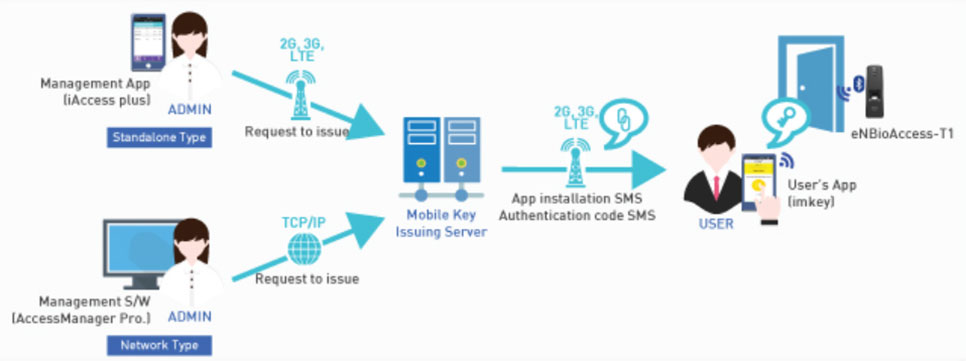

MOBILE KEY SOLUTION

KEY FEATURES

  • Bluetooth-enabled Terminal – Mobile Key Service
  • IP65 – Dustproof & Waterproof
  • System Status Check – 3 color LED indicator(Red, Green, Blue) – Beep indicator
  • Superior Matching Engine – 1st rank in FVC (Fingerprint Verification Competition)
  • Various Card Option – 125kHz EM, HID – 13.56MHz Mifare, HID(Felica, iClass, CEPAS)(Option)
  • Multifactor Authentication – Fingerprint, RF card, Built-in Relay, Entry Level Device
