Nitgen UBIO-X-Iris

The latest UBio-X Iris is a fresh new access control and time and attendance terminal that recognizes iris at a distance of up to 50cm and delivers rapid accurate iris/eye verification even when the user is wearing glasses or a mask, protective clothing, niqab, headscarf, and other items.

High performance offers the fastest matching speed, matching 40,000 iris templates in 1 second. 1,000,000 fingerprint templates can be matched in 1 second.

The Nitgen UBio X Iris is an all-in-one eye recognition terminal that enables for visitor management and access control. It accepts both fingerprints and cards and includes a multi-model authentication mechanism. It’s commonly used for ID verification in places like airports, hospitals, and construction sites.

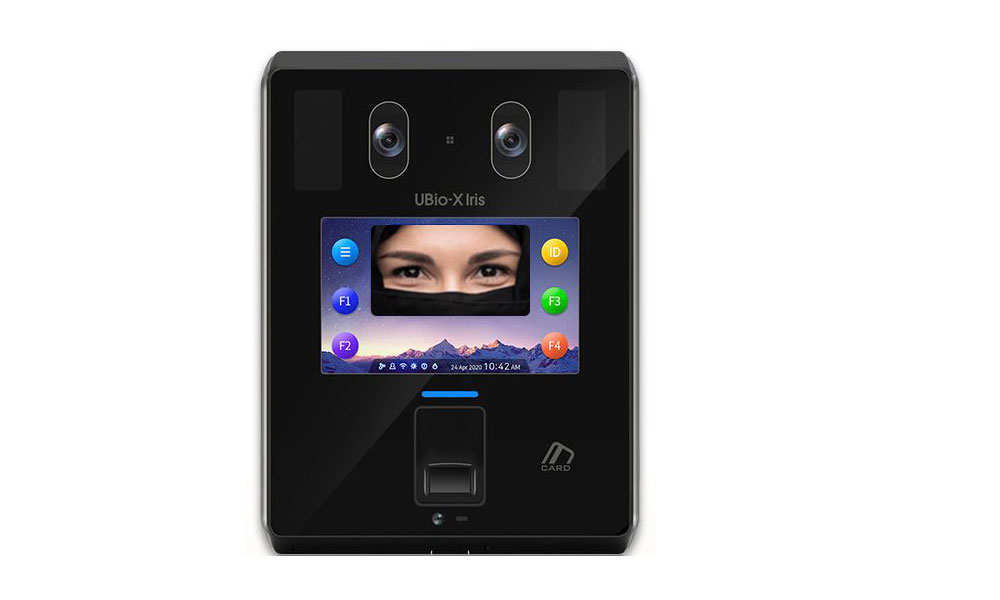

Nitgen UBio-X Iris

TECHNICAL SPECIFICATION

AUTHENTICATION METHOD BIOMETRIC
Dust/ Water Resistance X
MEMORY Max Users 200,000
Fingerprints (Templates) FP : 400,000 (1:1)
100,000 (1:N)
Iris : 400,000 (1:1)
40,000 (1:N)
Logs 10,000,000
Images 20,000
COMMUNICATION With Server TCP/IP
Other USB
Wireless LAN(Wi-Fi) Optional
Wiegand OUT O
RS232 O
RS485 O
Wiegand IN O
DISPLAY LCD 5″Color Touch
Backlight O
Embedded Camera Dual
CARD 125khz-EM O
HID Prox O
HID iclass O
13.56MHz Smart Card O
Keypad Touch Screen
Function keys SOFT
Door Phone Volp
FP SENSOR Platen Area 16.6 X 21.6 mm
Resolution 500 dpi
DIMENSION (W) X (H) X (D) mm 160.6 X 214 X 45.4
FRR /FAR 0.1% / 0.0001%
Operating Temperature -20 ~ 60℃
Opertating Software (Server solution) UBio Alpeta
MOBILE ACCES CARD SYSTEM (NFC/BLE) Mobile Phone Specification iPhone : iOS 10.0 or later / BLE4.2 or later
Android : Android 6.0 or later / Supports NFC
Security / Encryption Azure Key Vault / AES-128
Distance / Range Under 10cm (It may differ depending on smartphones)
Server Platform On-Premise / Cloud

SYSTEM CONFIGURATION

KEY FEATURES

  • Contactless Iris Recognition at a distance of up to 50cm
  • Internal Auto-tilt function & High-Definition Camera
  • High-speed Iris and Fingerprint matching
  • FBI PIV + FAP20 Certificated
  • 5” Touch Screen Interface
  • Patented Fake Fingerprint Detection
Brochure Download

DLI-IT offers the best prices for Nitgen’s biometric devices and access control management systems, including the UBio X Iris, in the Middle East, with quick delivery and free pre-sales consultation.
