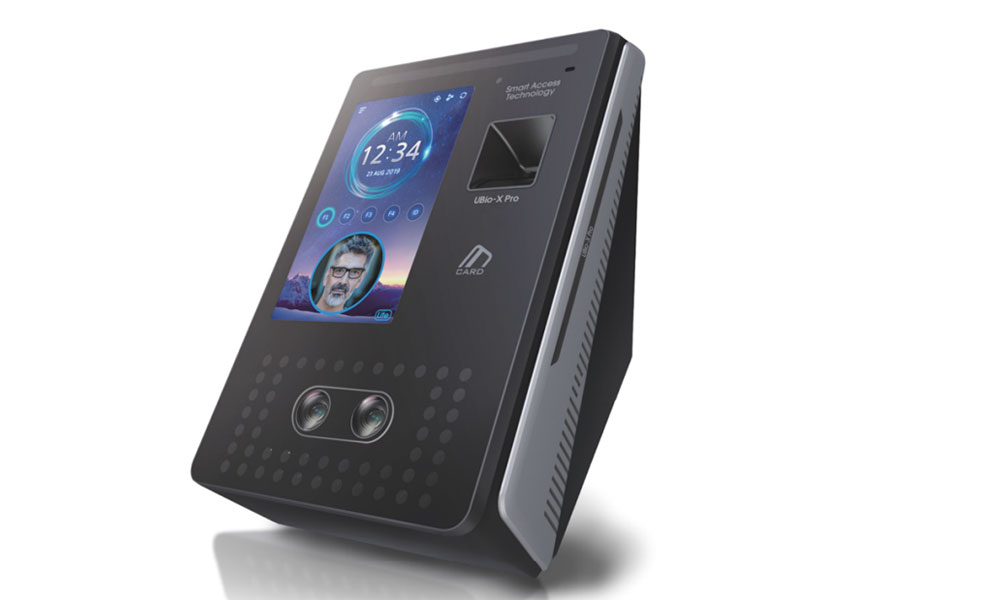

Nitgen UBio-X Pro Lite

Prime Face & Fingerprint Recognition Terminal

Nitgen UBio-X Pro Lite is a sophisticated face authentication system with an upgraded facial recognition algorithm. Nitgen UBio-X Pro Lite recognizes faces accurately in a variety of lighting conditions and features an upgraded face authentication algorithm. Equipped with a high-resolution camera that allows for the quickest matching speed while keeping the highest accuracy. In comparison to UBio-X Pro, X Pro Lite provides 35000 matchings per second.

The terminal has a 1.0 GHz Quad-Core Processor and a 5-inch LCD screen with easy-to-use graphics. It can scan RFID cards and credentials with a variety of frequencies, including 125kHz RF, 13.56 SC, HID Prox, and HID iClass. Nitgen UBio-X Pro Lite can be employed in a variety of applications and locations, including manufacturing plants, banks, and large-scale integrated security centers.

TECHNICAL SPECIFICATION

AUTHENTICATION METHOD		Biometric
DUST/WATER RESISTANCE		X
MEMORY	Max Users	500,000
	Fingerprints (Templates)	FP : 1,000,000 (1:1)
		200,000 (1:N)
		Face : 500,000 (1:1)
		35,000 (1:N)
	Logs	10,000,000
	Images	20,000
COMMUNICATION	With Server	TCP/IP
	Other	SD Card
	Wireless LAN(Wi-Fi)	Optional
	Wiegand OUT	O
	RS232	O
	RS485	O
	Wiegand IN	O
DISPLAY	LCD	5″Color Touch
DISPLAY	Backlight	O
EMBEDDED CAMERA		Dual
CARD	125khz-EM	O
	HID Prox	O
	HID iclass	O
	13.56MHz Smart Card	O
KEYPAD		Touch Screen
FUNCTION KEYS		SOFT
DOOR PHONE		Volp
FP SENSOR	Platen Area	15.5 X 19 mm
FP SENSOR	Resolution	500 dpi
DIMENSION	(W) X (H) X (D) mm	149.5 X 208.5 X89.7
FRR /FAR		0.1% / 0.0001%
OPERATING TEMPERATURE		-20 ~ 60℃

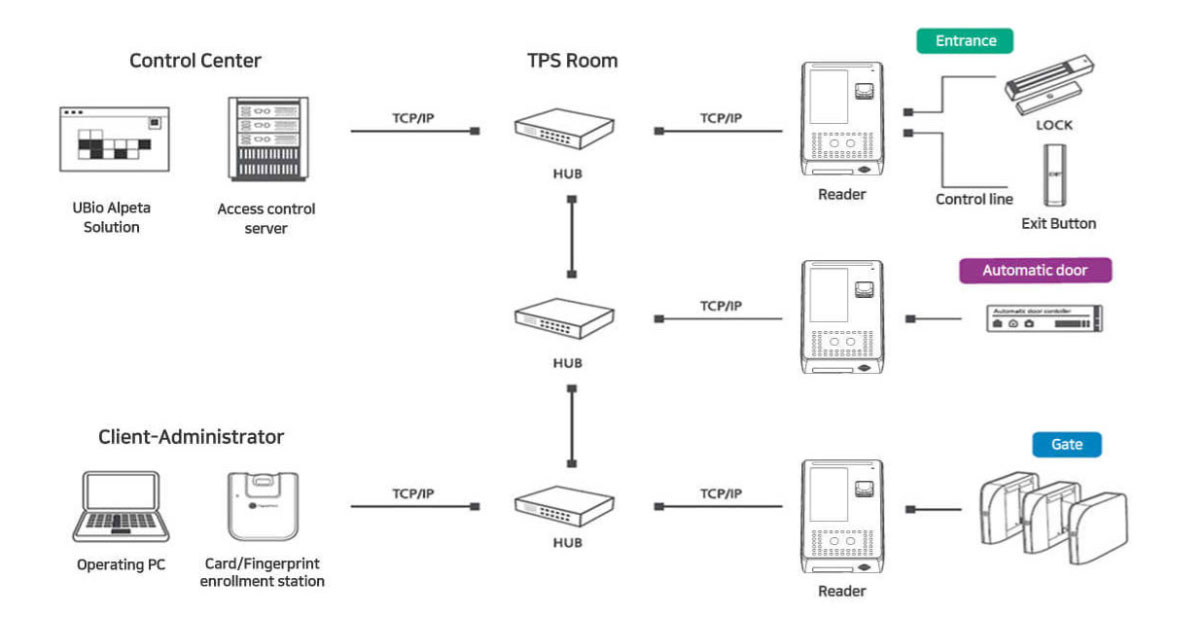

SYSTEM CONFIGURATION

KEY FEATURES

High Ambient light conditions illuminance up to 30,000 Lux
2 MP CMOS Camera w/IR LED, stronger filtering of brighter background conditions
High-Speed Face and Fingerprint Matching
10 GHz Quad Core CPU
Patented Fake Fingerprint Detection
Android-based intuitive GUI with 5” touch LCD

Brochure Download

DLI-IT offers the best prices for Nitgen’s biometric devices and access control management systems, including the UBio X Pro Lite, in the Middle East, with quick delivery and free pre-sales consultation.
